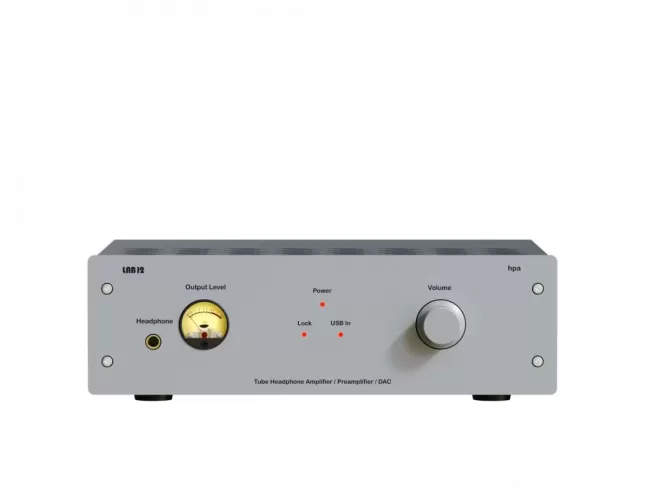

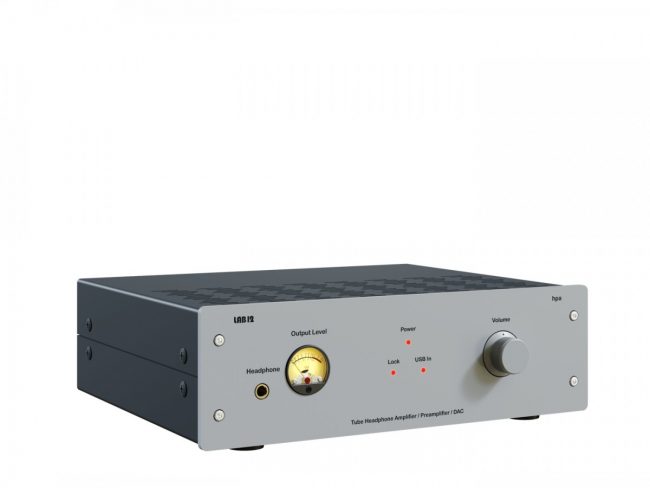

OTL Tube Headphone Amplifier / Preamplifier with USB DAC

Category:

Description

This is where it all started for Lab12. Our love for music, for high-end audio and our exploration for many years, gave us a huge challenge when designing a headphone preamplifier that met our demand to deliver a faultless sonic signature. Dealing with the sensitive signal output and transforming it into a true high-end audio headphone amplifier is not a task that everyone would dare to explore, but for Lab12 it is one we could not resist.
High-end audio headphone listening offers one of the most coveted and intimate musical listening experiences available, yet not many headphone amplifiers on the market are able to deliver that experience adequately and to the satisfaction of true music lovers.

Therefore, we decided to follow a different and more challenging path by designing Lab12 Hpa as a full blooded OTL tube headphone amplifier with the utmost transparent, musical and emotionally engaging heart.
And we didn’t just stop there! Hpa is not only a fully enclosed state-of-the-art headphone system which includes a high-grade USB DAC, but it’s also a fully operational high-quality preamplifier with multiple inputs, including USB that can form the heart of any high-end play back system.
The Lab12 Hpa tube preamplifier alone encompass all of our knowledge and know how and offers a performance that challenges preamplifiers costing many times the price and brings you a remarkable emotional connection to your music.
As all Lab12 products, Hpa comes with two color choices of glass blasting anodizing finish.

Features

• OTL tube headphone amplifier stage
• Blue Velvet ALPS Potentiometer
• Five separate regulated Power Supplies
• SRSG® implementation
• Analog retro nissei VU meter
• 5mm Aluminum face panel
• Five Years Guarantee

Specifications

• Power: 230VAC 50Hz (115VAC 60Hz)
• Power consumption: 60 VA max
• Frequency response: 5 Hz to 100K Hz (-3dB)
• Input impedance: 50K ohm
• Recommended headphones impedance: 64-600 ohm
• Tube complement: 3x 6n1p dual triode

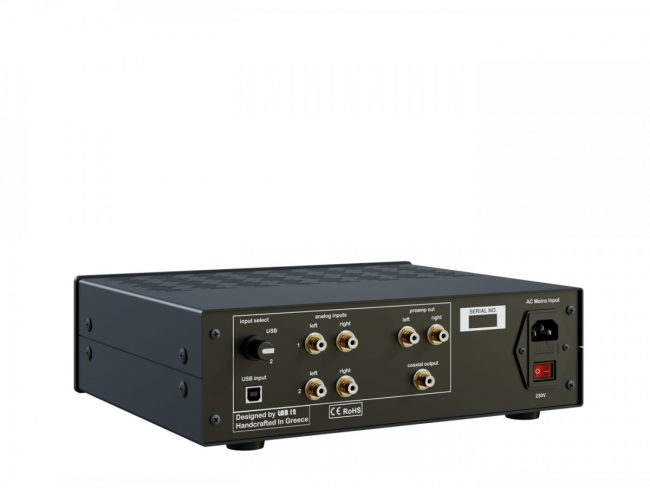

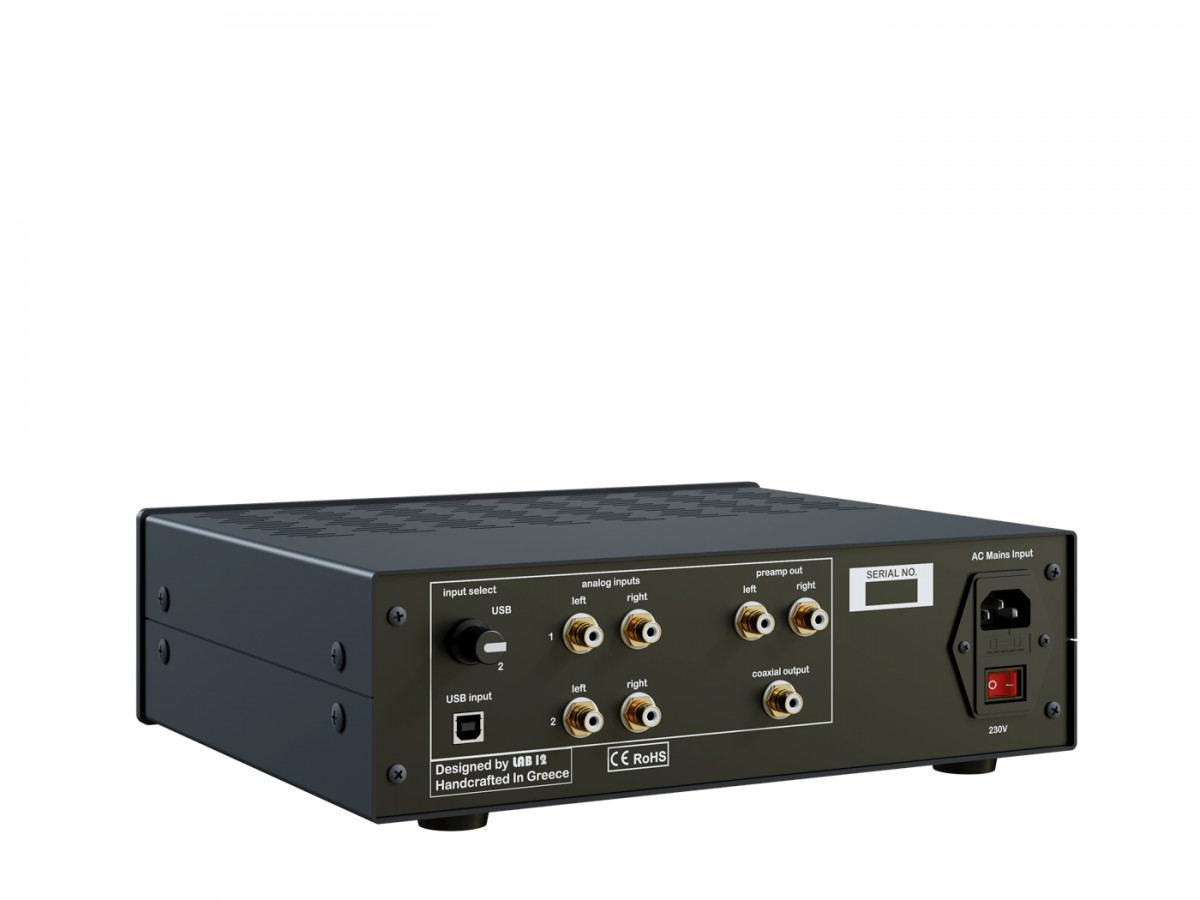

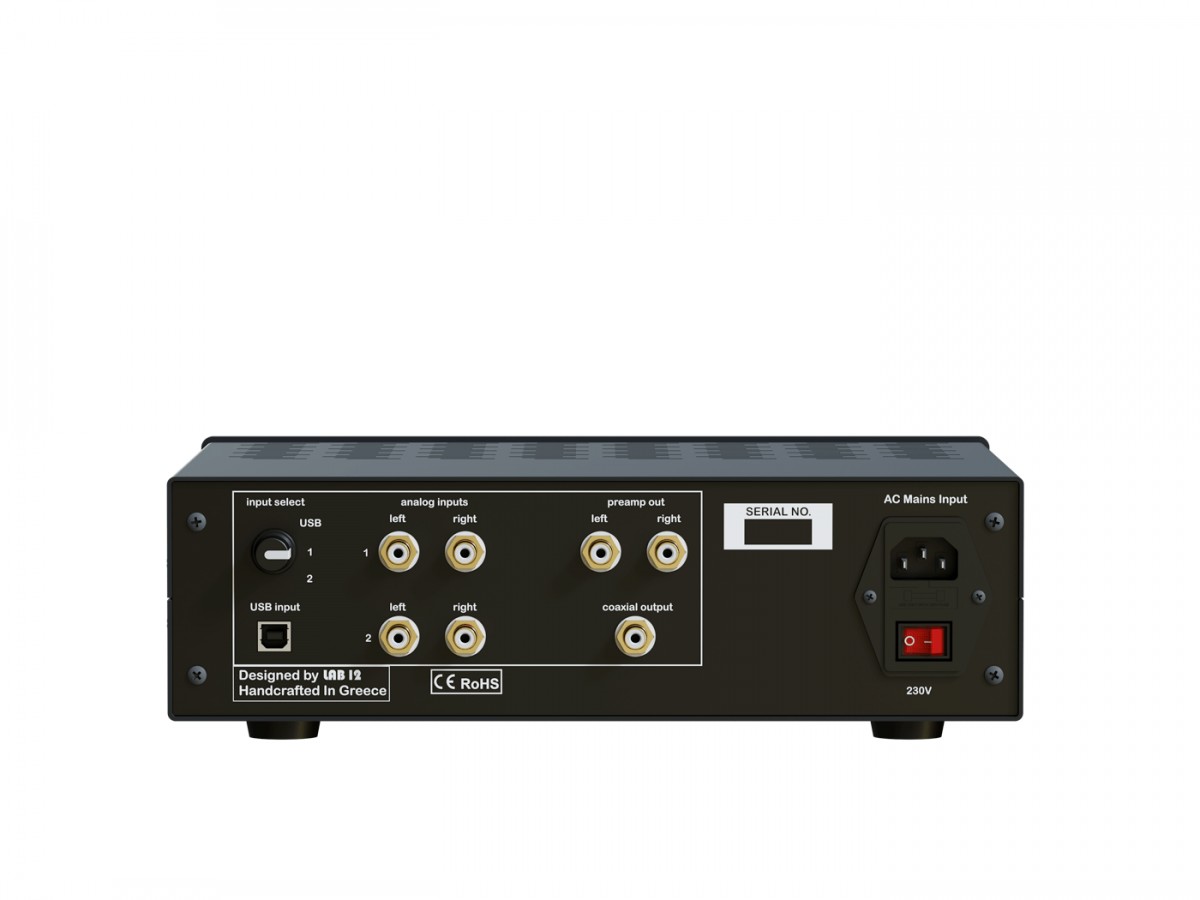

• Inputs: 2x line stereo (RCA connectors), 1x USB
• Preamp output: 1x line stereo
• Headphone output: 1x 6.3mm jack

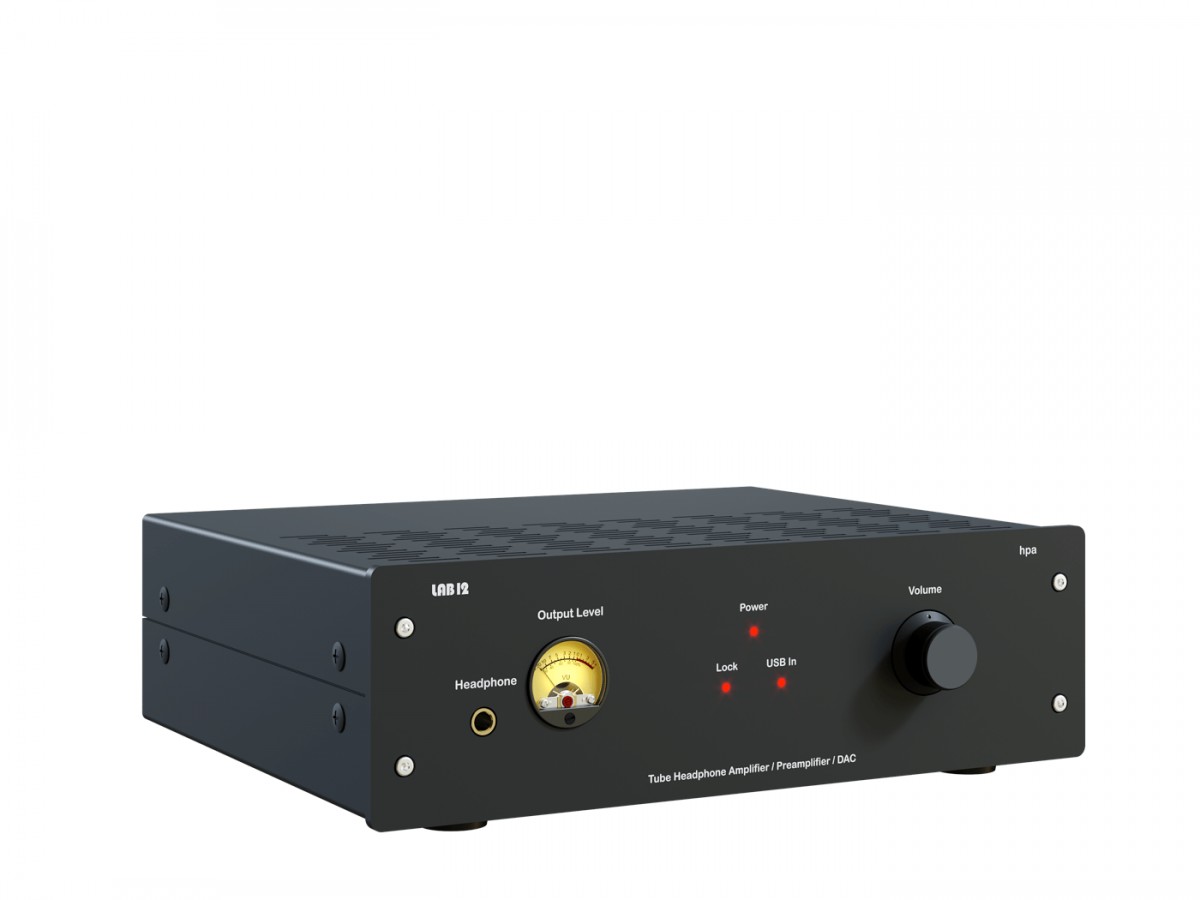

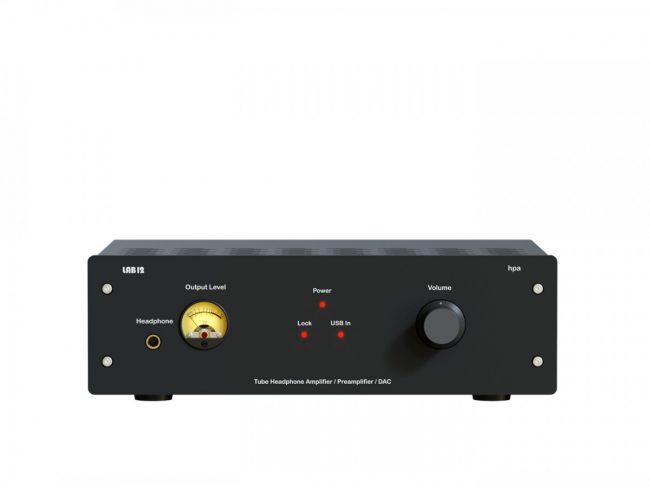

• Available Colours: Matt Black, Frozen Silver
• Dimension (WxHxD): 32x11x29 cm
• Weight: 6 Kg
